savinglights solar spotlights-D-SBSPL

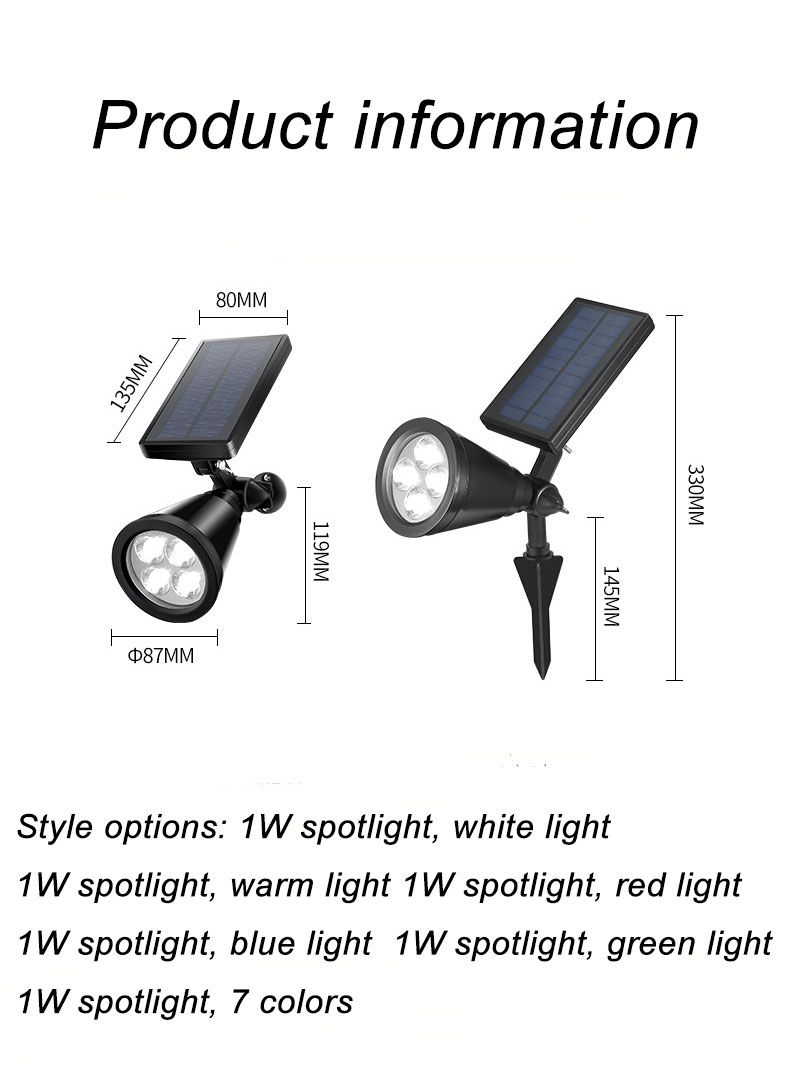

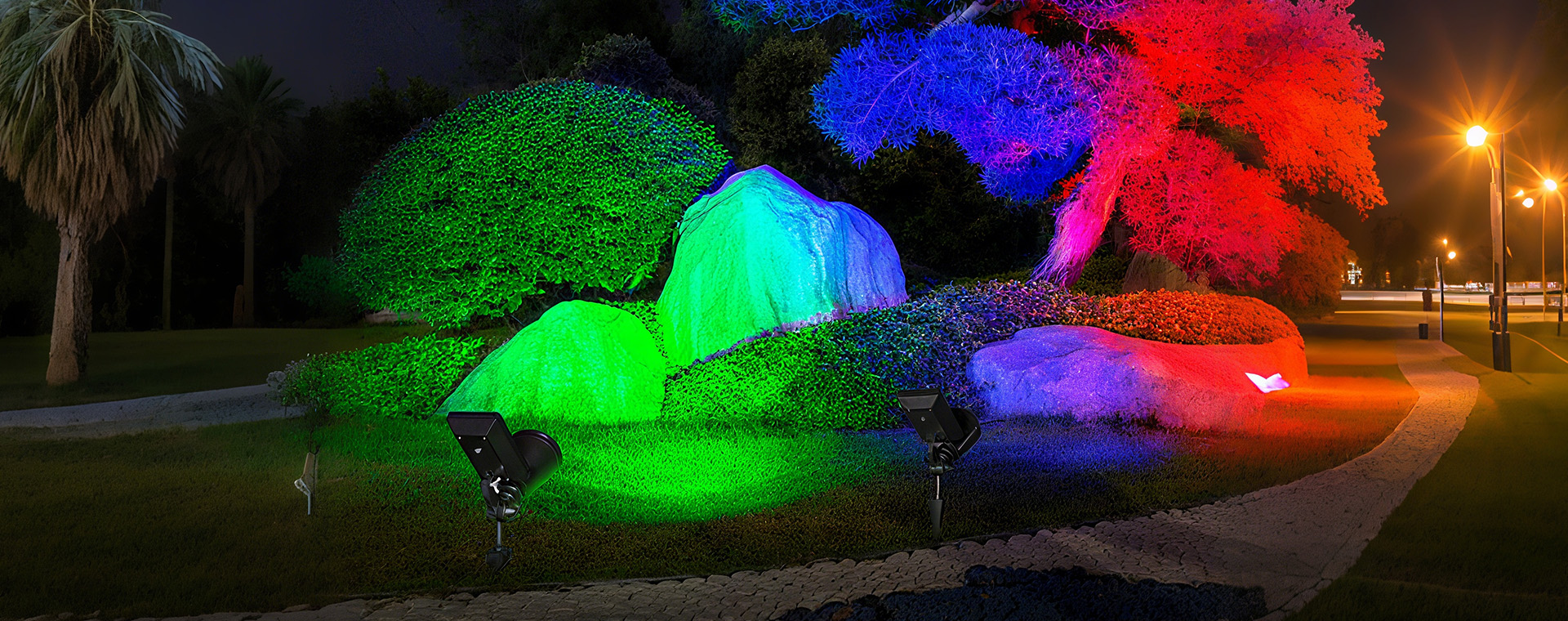

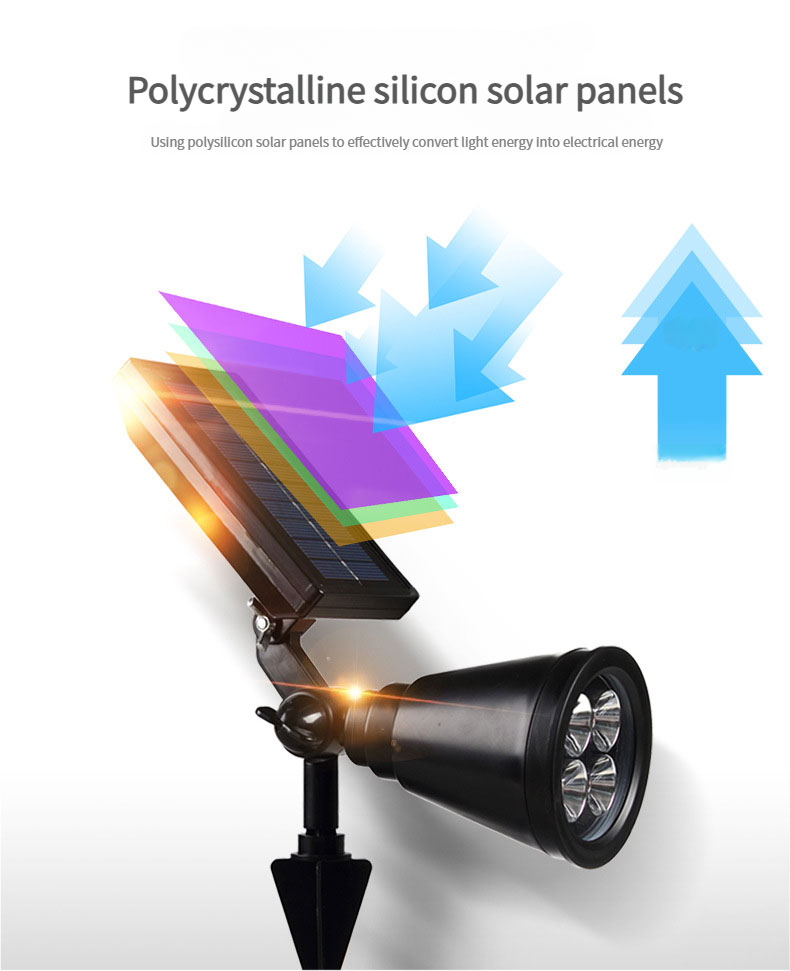

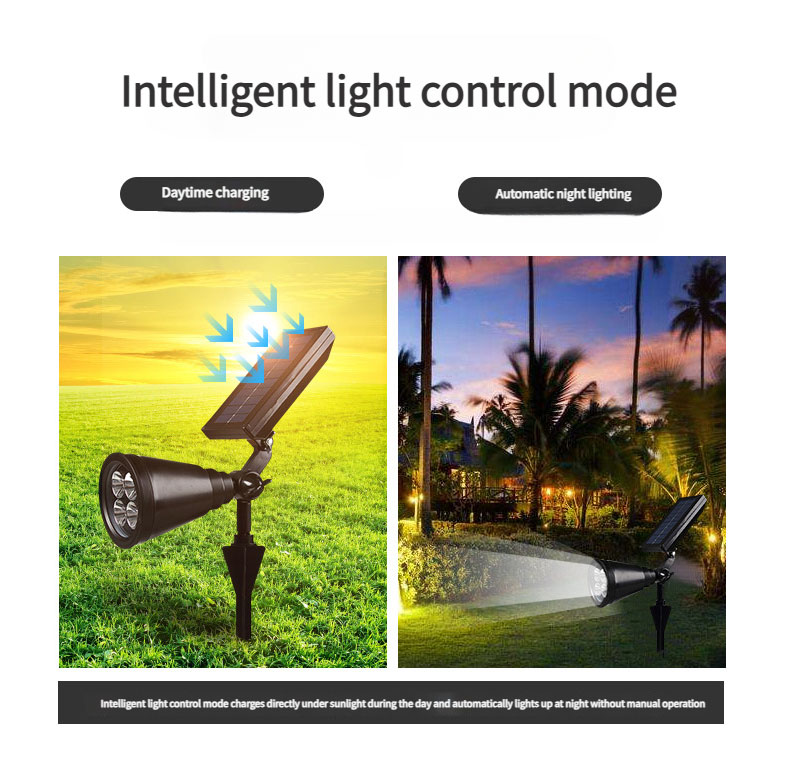

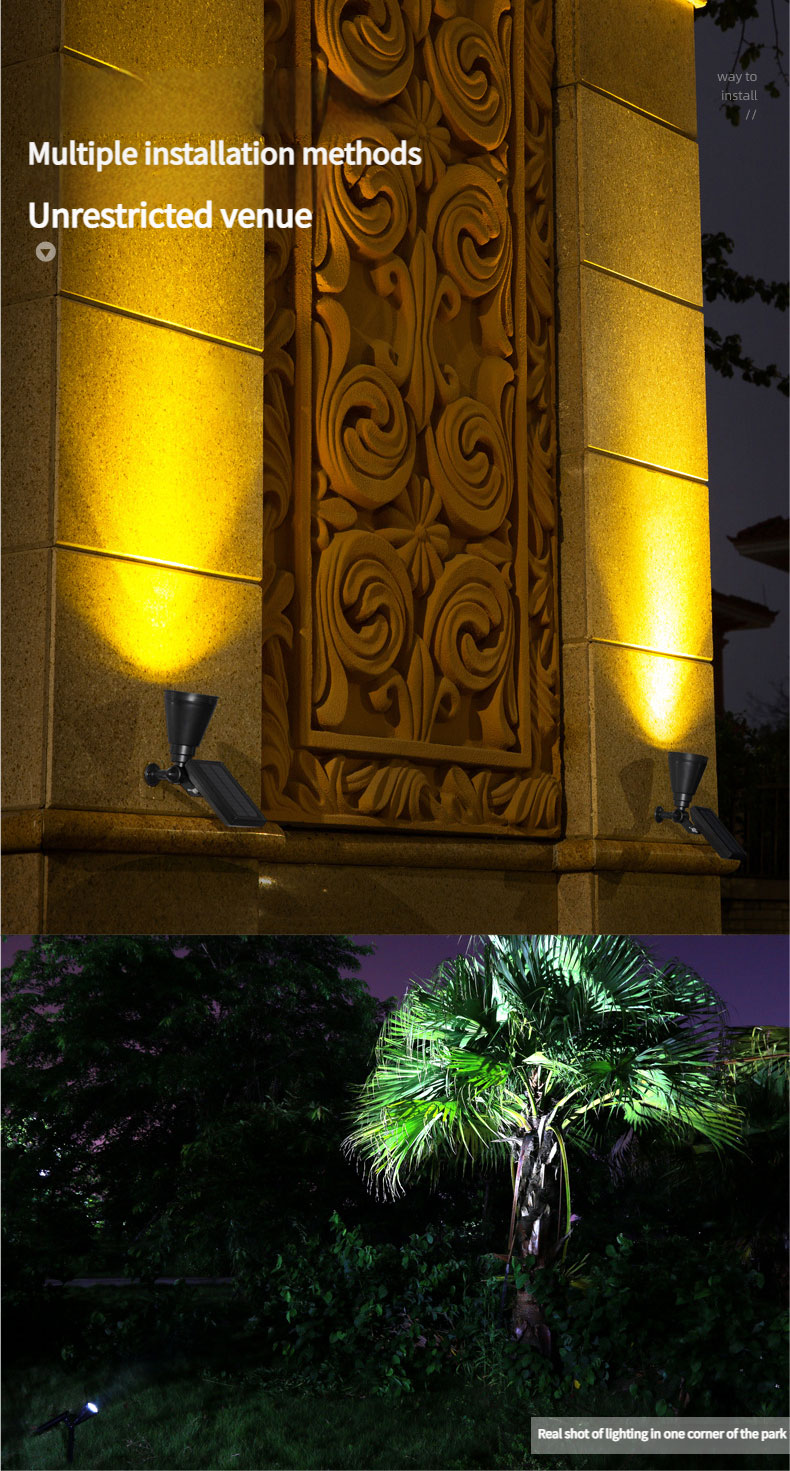

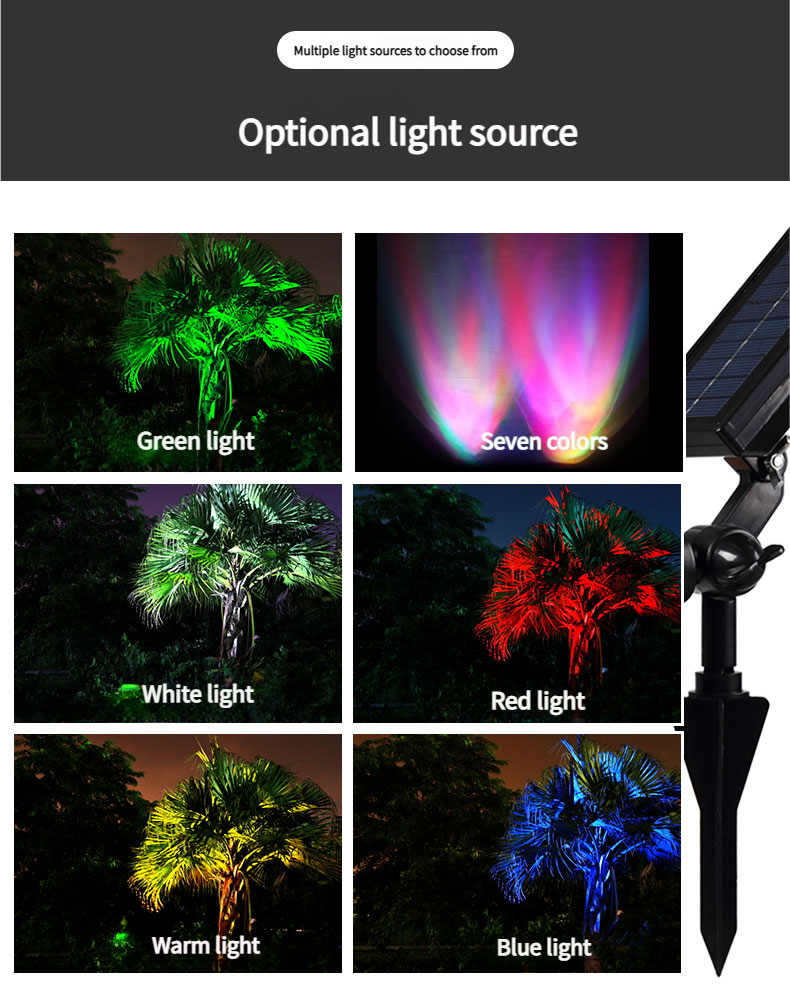

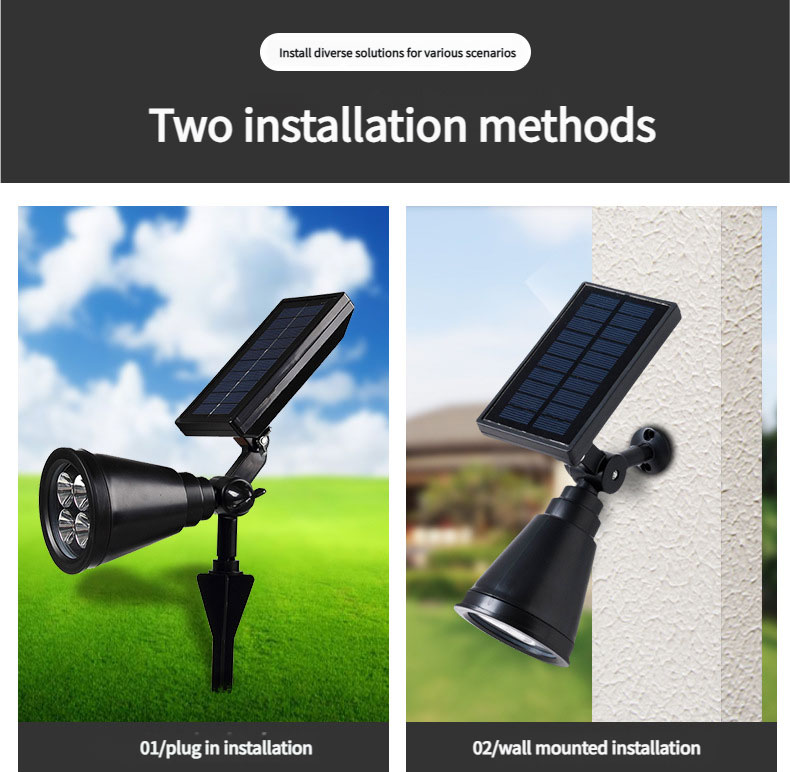

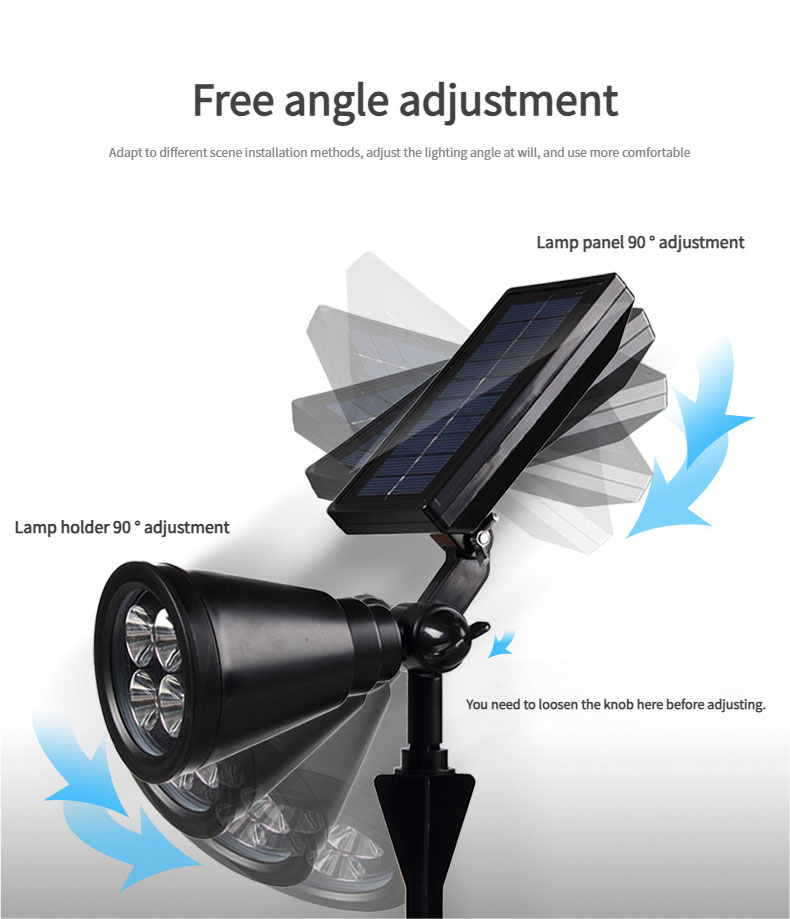

savinglights ground-insert solar spotlight, with multiple light source options, is specially designed for outdoor scenarios and is an ideal choice for lighting in courtyards, gardens, landscapes and lawns. Equipped with an intelligent light control system and a polycrystalline silicon solar panel, it automatically charges during the day and lights up at night without manual operation, saving trouble and energy. It offers a variety of light source options, which can be flexibly switched according to different atmosphere needs. It supports two installation methods: ground insertion and wall mounting, adapting to diverse outdoor environments, with convenient and hassle-free installation. With an IP65 protection rating, it can easily withstand complex weather conditions such as wind and rain, ensuring stable operation. Please refer to the details page for specific dimensions.
| Model | Solar panel | Battery | Material | Light source | Charging time | Working time |
| D-SL08 |
5.5V 500MA 2.5W Polycrystalline silicon PET laminated board |
3.7V 1800mA 18650 lithium battery |
ABS+PC |
24PCS high - Brightness 2835 surface - Mounted Devices |
High brightness for 4-6 hours/ Constant light for 8-10 hours |
|
| D-SBSPL |
5.5V 1W Monocrystalline silicon solar panel |
3.7V 18650 2200MAH Lithium battery |

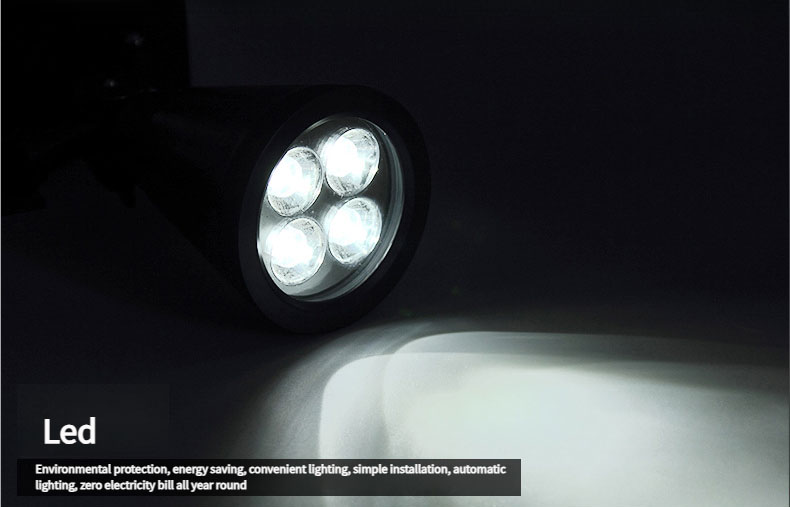

4*0.5W 10 round heads/LED | 6hours | 10hours | |
| D-B01 | 5V 500MA 2.5W | 1.2V 1600mAh AA Ni-MH | ABS + iron | 2pcs * F5 lamp beads | ||
| D-S016 |
6V 3W Monocrystalline silicon solar panel |
3.7V 5200MAH | ABS+PC |
36PCS High-brightness 2835 Surface-Mounted Device |
||
| D-SL09 |
5.5V 2.5W Monocrystalline silicon laminated board |
3.7V 2200MA 18650Lithium battery |
24PCS high - Brightness 2835 surface - Mounted Devices |
6-8hours | 8-10hours | |
| T-G2206 | 83.8*83.8mm/5.5V 1W | 3.7V 1500MAH 18650 | SMD2835 3V 0.2W 49LED |
6h:80%power capacity 8h:90%power capacity |
12hours | |
| T-S4202 |
1.One-to one monochrome:5.5v 3W 2.One-to-two RGB:5.5V 3W 3.One-to-two monochrome:5.5V 4W 4.One-to-three RGB:5.5V 3W 5.One-to-four monochrome:6V 5W 6.One-to-four RGB:6V 5W |
One-to one :3.7V 2000MAH 18650/ One-to-two:3.7V 1500MAH*2 18650/ One-to-four:3.7V 2000MAH*2 18650/ One-to-three:3.7V 2000MAH 18650 |
Main body: Die-cast aluminum Accessories: ABS |
One-to one :High - power lamp beads: 1W 3V 1 piece/ One-to-two:High - power lamp beads:1W,2 pieces/ One-to-threeRGB:High - power RGB lamp beads:3W 3V, 3 pieces/ One-to-four RGB:High - power RGB lamp beads: 3W 3V,4 pieces / One-to-four monochrome:SMD2835: 3LED * 4 |
6-8hours |
One-to-one:High brightness:6h Low brightness: 10h One-to-two：High brightness:6h Low brightness:9h One-to-three/four:8h |
| T-G0208 | 138*82mm/5.5V/3W | 3.7V 2000MAH 18650 | ABS+PC | SMD2835 3V 0.2W 36LED |
6h:80%power capacity 8h:90%power capacity |
12hours |
| 83.8*83.8mm/5.5V 1W | 3.7V 1500MAH 18650 | SMD2835 3V 0.2W 49LED | ||||
| Model | Solar panel | Battery | Material | Light source | Charging time | Working time |
| D-SL08 |
5.5V 500MA 2.5W Polycrystalline silicon PET laminated board |
3.7V 1800mA 18650 lithium battery |
ABS+PC |
24PCS high - Brightness 2835 surface - Mounted Devices |
High brightness for 4-6 hours/ Constant light for 8-10 hours |
|
| D-SBSPL |
5.5V 1W Monocrystalline silicon solar panel |
3.7V 18650 2200MAH Lithium battery |
4*0.5W 10 round heads/LED | 6hours | 10hours | |
| D-B01 | 5V 500MA 2.5W | 1.2V 1600mAh AA Ni-MH | ABS + iron | 2pcs * F5 lamp beads | ||
| D-S016 |
6V 3W Monocrystalline silicon solar panel |
3.7V 5200MAH | ABS+PC |
36PCS High-brightness 2835 Surface-Mounted Device |
||
| D-SL09 |
5.5V 2.5W Monocrystalline silicon laminated board |
3.7V 2200MA 18650Lithium battery |
24PCS high - Brightness 2835 surface - Mounted Devices |
6-8hours | 8-10hours | |
| T-G2206 | 83.8*83.8mm/5.5V 1W | 3.7V 1500MAH 18650 | SMD2835 3V 0.2W 49LED |
6h:80%power capacity 8h:90%power capacity |
12hours | |
| T-S4202 |
1.One-to one monochrome:5.5v 3W 2.One-to-two RGB:5.5V 3W 3.One-to-two monochrome:5.5V 4W 4.One-to-three RGB:5.5V 3W 5.One-to-four monochrome:6V 5W 6.One-to-four RGB:6V 5W |
One-to one :3.7V 2000MAH 18650/ One-to-two:3.7V 1500MAH*2 18650/ One-to-four:3.7V 2000MAH*2 18650/ One-to-three:3.7V 2000MAH 18650 |
Main body: Die-cast aluminum Accessories: ABS |
One-to one :High - power lamp beads: 1W 3V 1 piece/ One-to-two:High - power lamp beads:1W,2 pieces/ One-to-threeRGB:High - power RGB lamp beads:3W 3V, 3 pieces/ One-to-four RGB:High - power RGB lamp beads: 3W 3V,4 pieces / One-to-four monochrome:SMD2835: 3LED * 4 |
6-8hours |
One-to-one:High brightness:6h Low brightness: 10h One-to-two：High brightness:6h Low brightness:9h One-to-three/four:8h |
| T-G0208 | 138*82mm/5.5V/3W | 3.7V 2000MAH 18650 | ABS+PC | SMD2835 3V 0.2W 36LED |
6h:80%power capacity 8h:90%power capacity |
12hours |
| 83.8*83.8mm/5.5V 1W | 3.7V 1500MAH 18650 | SMD2835 3V 0.2W 49LED | ||||
